  • Explosion Diverters
Explosion Diverters
+

Share

  • Product Details

  • Application Instructions

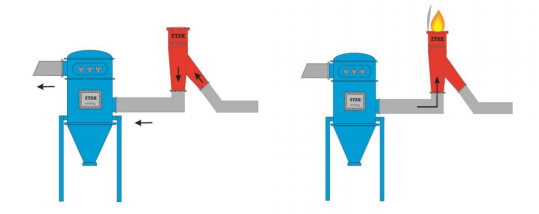

    1. Normal operating state
    2. After an explosion occurs in the equipment, the combustion shock wave of the flame instantly ruptures the vent panel, allowing the pressure inside the pipeline to freely release into the atmosphere.

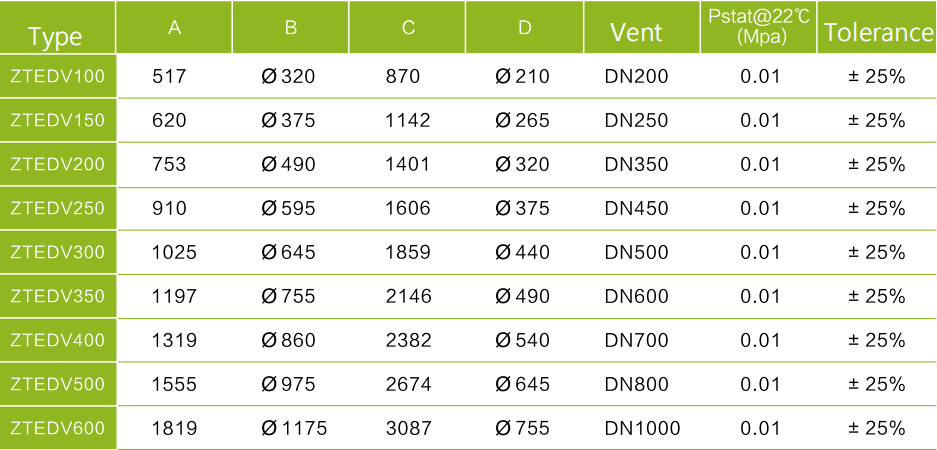

    Product Specifications

Product application field

Pharmaceuticals

Metallurgy

Food Processing

Petrochemical

Coal Energy

Environmental Protection

Chemical

Electricity

Related Products

Our advantage

Trusted Partner

The company's business also covers the third-level professional contracting of construction mechanical and electrical installation engineering, which can provide customers with one-stop service for product development and design, manufacturing, installation and construction, and after-sales guidance.

Perfect quality system

The company has established a perfect quality management system in strict accordance with domestic and foreign industry standards. China Taian Branch cooperates closely with universities and research institutes to jointly promote technological innovation.

24-hour professional service

With professional after-sales and sincere service as the criterion, 24 hours a day, all year round to provide customers with better quality and more professional service.

Explosion Diverters

The explosion diverters can effectively reduce the impact force of deflagration propagating in the pipeline to an acceptable safety level, but it cannot completely isolate the flame and pressure. The explosion diverters controls the destructive force in the pipeline by releasing the pressure produced during combustion and explosion in the pipeline and changing the direction of flame propagation. This can effectively protect other equipment.

Parameter characteristics

Passive explosion isolation, requiring no additional detectors or sensors

Reduction of the destructive force generated by an explosion.

A vent panel prevents secondary damage.

Optional heat-insulating design is available
